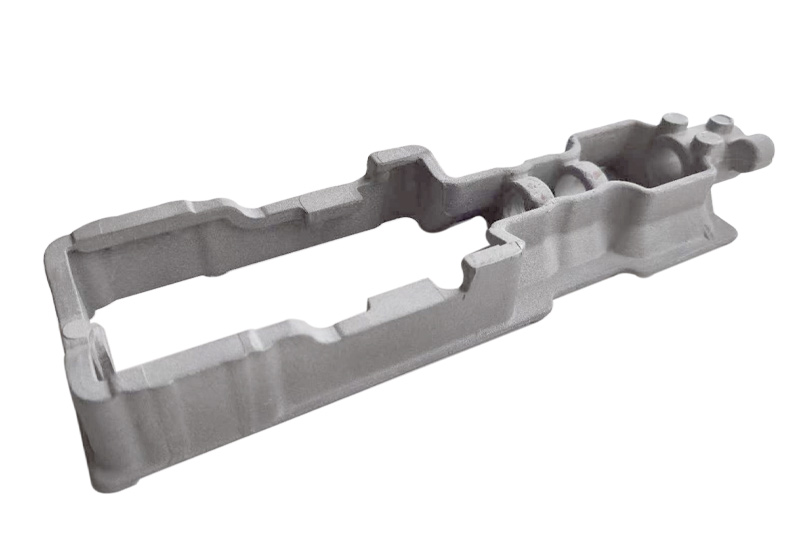

Instrument and meter castings serve as the protective housing for sensitive measurement components, requiring high dimensional accuracy, strong environmental sealing, and long-term structural stability. Through advanced aluminum die casting, manufacturers can produce compact, precision enclosures that safeguard internal electronics from moisture, dust, vibration, and temperature swings.
Whether used in flow meters, pressure gauges, utility meters, or industrial instrumentation, aluminum castings provide the lightweight, corrosion-resistant structure needed to keep readings accurate over years of field use. Their dimensional precision also ensures display windows, seals, and connector ports align correctly during assembly.
Supported by careful mold design, simulation-based engineering, and strict quality control, modern instrument and meter castings achieve consistent, repeatable results at production scale—helping manufacturers deliver reliable, weatherproof instrumentation to customers worldwide.
Instrument housings are small, but the tolerances inside them aren't forgiving—display windows, connector ports, and seal grooves all have to line up. We handle that fit from the first sample through finished, coated parts.
We produce an early sample housing to verify that displays, buttons, and ports actually line up as designed.
Molds are sized and toleranced for compact enclosures, where a fraction of a millimeter matters.
Thin-wall die casting keeps meter and instrument housings light without sacrificing dimensional accuracy.
Window seats, seal grooves, and connector bores are machined to keep readouts sealed and legible.
Coating and anodizing protect against weather exposure while keeping panel graphics clear and readable.
Instrument and meter housings must maintain tight tolerances in a compact footprint while resisting moisture, dust, and repeated outdoor exposure. Even minor porosity or dimensional drift can throw off display alignment or compromise sealing, affecting reading accuracy and long-term reliability.
Innovaw addresses these challenges through precision die casting, tightly controlled mold-flow simulation, and careful process monitoring, ensuring stable wall thickness and accurate feature placement. This makes our castings well-suited for utility meters, flow meters, pressure gauges, and other field instrumentation requiring consistent long-term performance.
IATF 16949 Certified Manufacturer
Innovaw’s quality system maintains the tight tolerances instrument and meter housings depend on, with real-time monitoring catching dimensional drift before parts reach assembly.
In-House Quality Inspection Lab
CMM and VMS measurement, spectrometer testing, tensile and hardness checks, X-ray inspection, and water or helium leak testing confirm that sealing and dimensional accuracy hold up before parts ship.
ISO 14001, ISO 45001, SA8000, ISO/IEC 27001
Innovaw builds sustainability, safety, social responsibility, and data security into instrument and meter casting production for partners worldwide.

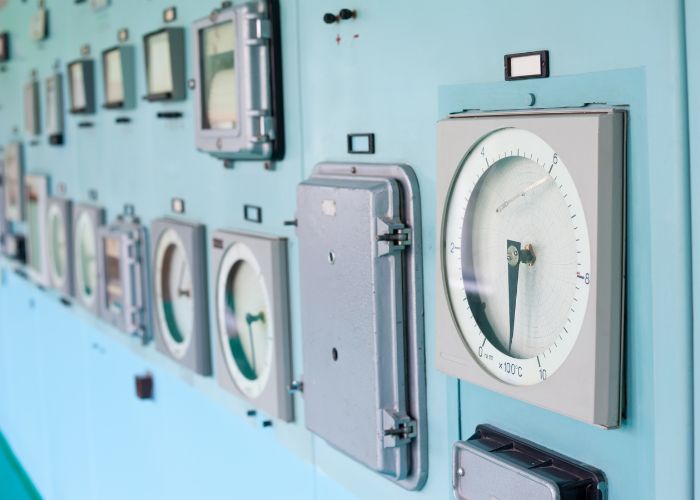

Innovaw produces precision aluminum castings for utility meters, flow meters, pressure gauges, and other field instrumentation where sealing and dimensional accuracy directly affect reading reliability. Our housings protect internal electronics from weather exposure while keeping display windows and connector ports precisely aligned.
These components are used across water, electricity, and industrial process monitoring equipment that must perform accurately over years of outdoor or field service.
Innovaw has extensive experience producing compact, high-precision castings for instrumentation manufacturers who can't compromise on sealing or dimensional accuracy. Our engineering team works with clients from prototype through mass production to lock in tight tolerances early.
With die casting, CNC machining, and finishing capabilities under one roof, we simplify sourcing while maintaining consistent quality. As an ISO 14001, ISO 45001, SA8000, and ISO/IEC 27001 certified manufacturer, we support the reliability standards instrumentation brands require.
Innovaw selects alloys such as ADC12, A380, and A360 for instrument and meter housings, chosen for fluidity in thin-wall sections, corrosion resistance, and surface-finish compatibility with printed graphics and displays.
Anodizing, powder coating, and protective coatings are available to extend weatherproofing and keep panel markings legible over time.
Beyond aluminum die casting, Innovaw offers CNC machining, investment casting, sand casting, and rapid prototyping to support instrument and meter component production at any volume.
CNC Machining for Instrument Components
Innovaw machines display windows, seal grooves, and connector ports to tight tolerances for reliable instrument and meter assembly.
Investment Casting for Instrument Parts
Investment casting suits small, detailed instrument components requiring fine feature definition and smooth surfaces.
Sand Casting for Instrument Components
Sand casting supports larger instrument enclosures and low-volume production runs with full tooling and finishing support.
Gravity Casting for Instrument Components
Gravity casting provides added structural strength for instrument housings and mounting bases requiring extra durability.
Innovaw’s instrument and meter castings are supplied to customers across the United States, Germany, the United Kingdom, Canada, Australia, and other global markets. As an ISO9001:2015 certified China manufacturer, we ensure every housing meets the accuracy and weatherproofing standards field instrumentation requires.
Contact us today to learn how our precision tooling and engineering support can improve the reliability of your instrument and meter castings.
